- Specifications
- Configuration Table

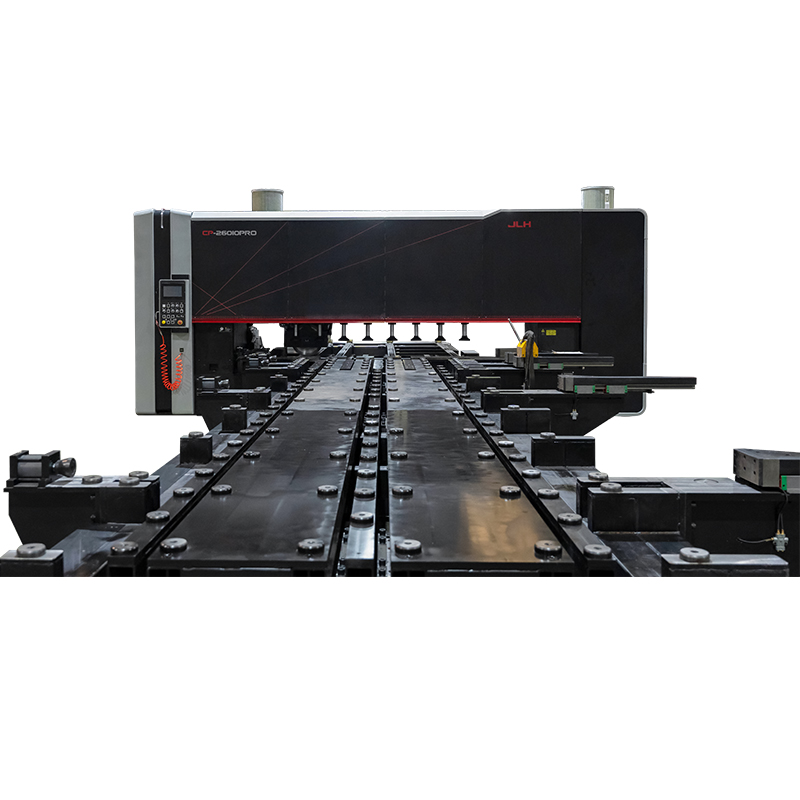

| Specifications | CP-26010PRO |
| Cutting range square (W x H) | 2600*100mm 102*4in |
| Shortest length of cut-off piece | 1100*20m 43.3*0.8in |
| Shortest remnant length in automatic operation, possible only if the material has a perfect geometric surface | 400mm /15.7in |
Shortest remnant length individual cut | 40mm /1.6in |
| Length | 10030mm/394.9in |
| Width incl. chip conveyor | 6300mm/248in |
| Height | 3000mm/118.1in |
Material support height | 720mm/8.4in |
| Total weight | ≈28000KG/61729lb |
| Total connected load | 41kw/54.6hp |
| Power of saw motor | 30kw/40hp |
| Hydraulic motor | 7.5kw/10hp |
| Cutting speed infinitely variable with | 40-100rpm/min |
| Saw feed speed | 1 - 700 mm/min 0.04-27In/min |
| Automatic material feed length, single stroke | 800mm /31.5in |
| Automatic material feed length, multiple stroke | 9999mm /393.66in |
| Saw blade diameter | φ425mm /φ16.73 |
| Saw blade bores | φ50mm /φ1.96 |
| Saw blade thickness | 2.7mm*2.25mm 0.1in*0.08in |
| Functional description | CP-26010PRO |
CE standard fully enclosed protection | ● |
| 0 degree servo feed | ● |
| JLH-EHA | ○ |
| Saw Master | ○ |
| CE Electrical Safety | ● |
UL Electrical Safety | ○ |
Main drive servo motor | ● |
| HMI+Buttons | ● |
| Inverter | ● |
| Mistspray system (2L) | ● |
| Dust collection device | ● |
| Cutting pipe blast device | × |
| Cabinet air conditioner | ● |
| LED working light | ● |
| Automatic chip conveyor (spiral) | ● |
| Vise pressure regulator | ○ |
| Top clamp | ● |
| Hydraulic cooling fan | ● |
| Auto Lubrication device | ○ |
| Roller type work table | ● |
| Servo Feed | ● |
| Units: mm/kw/L/m/min | ● |
| Sawdust collection Cart 70 (L) | ● |
| Tool box (wire brush, levelling pads, spare paint) | ● |
| Saw blade | ● |
| Transport underframe for containers | ○ |
| ● : Standard ○ : 0ptional × : Non-optional | |
